Frame Builder
FB101 2 Hole Flat Plate
FB101 2 Hole Flat Plate

FB101 2 Hole Flat Plate

Frame Bracket

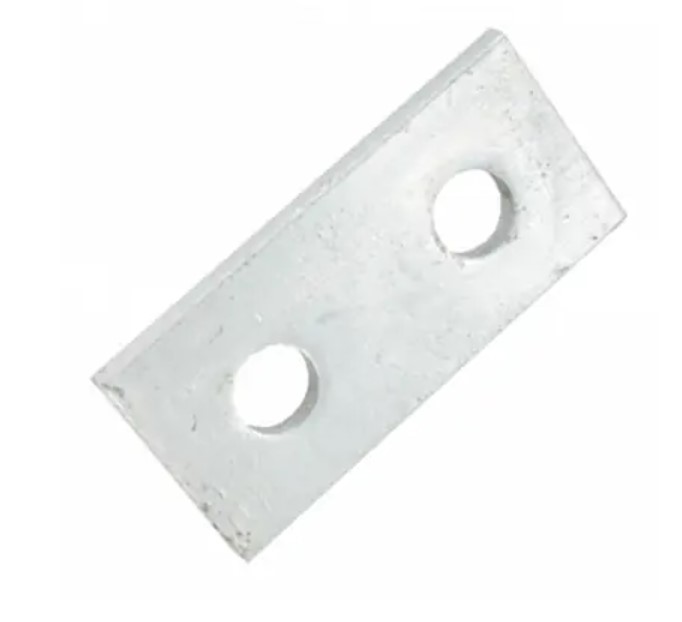

FB101 2 Hole Straight Flat Plate Fitting. Use for fixing and coupling adjoining lengths.  All 14mm diameter holes use M12 grade 8.8 hex head screws with M12 BSEN 10025 S275 or Q235 Channel Nuts

Dimensions

40x80x5

Part No.

FB101 2 HOLE FLAT PLATE BRACKET

Finishes / Suffix

Finishes and coatings

  • PG -Pre Galvanised to Z275- BS EN 10346
  • ZM -Zinc Magnesiium coated to standard EN10346-2015
  • MS- Plain oil to BS EN 10025 standards. Pickled & Oiled with a min. yield 280  n/mm².
  • HDG -Processed in accordance with BS EN ISO 1461-2009
  • SS -Stainless steel to 1.4404 (316L) standards.
  • ZD -Zinc Dicromate Yellow ASTM B633

Add to quote
Download PDF
FB101
Product Finishes

Specification:

Standards, References, & Ratings

  • UKCA
  • BS 6946:1988
  • LUL
